Preparing Your Pen Blanks for the Lathe

What You’ll Need to Prepare Your Pen Blanks for Turning

To state the obvious, the first thing you’ll need to start turning your pen is all of the proper supplies. Any of the standard slimline pen kits should come with the following components:

  • 2 brass tubes
  • The pen tip (the front of the pen)
  • The twist mechanism
  • The center band/washer
  • The clip for the back end
  • The cap to press the clip into the back end of the pen
  • The ink cartridge



In addition to all of that, you will also need a pen blank of some kind. In this particular tutorial, I’ll be using Bocote. So here are all of the pieces you should have in front of you before you begin working:

all of the parts necessary to turn a slimline wooden pen



Pen Turning Tools, Accessories, and Equipment You’ll Need

Now let’s talk tools. There is a huge array of options for prepping your blanks for the lathe, but in this tutorial I’ll be using the following:



A lot of the accessories and smaller tools you need can be knocked out in one blow if you’re just getting started and don’t have much of what’s needed. PSI offers a few different starter packs through Amazon in case you’re interested in taking a look: Pen Making Starter Pack 1, Pen Making Starter Pack 2, Pen Making Starter Pack 3. They decrease in price as you go along, but you’ll get more kits, more supplies, and more tools for the higher priced packs. All three of them are a really good value and save you the time of clicking through websites buying each component one piece at a time.



You’ll also notice that I drill my pen blanks on my lathe rather than using a drill press. I used to drill my blanks using a drill press, but after a few years I sprang for the dedicated pen blank drilling chuck above because I get a perfectly center, perfectly straight hole every single time now. That’s saved me a lot of difficulty and frustration, even though it takes a little more time.   If you do decide to use a drill press for drilling your blanks, you should make sure that you own a pen blank drilling vise to give you the best results possible.



Scroll to the top of this page and click “Step 1” to read about measuring out your pen blanks.

Step 1: Measuring Your Pen Blanks

Measuring out the blocks you’ll need to turn a slimline pen is pretty simple. You simply take your brass tubes, lay them across the blank, and mark that spot on your blank with a pencil. I usually leave right around 1/8″ or 3mm slack just in case something goes wrong with cutting or drilling.

measuring pen blanks for drilling



For slimline pens, measuring the second blank is pretty simple since both tubes are the same dimensions. Just take the same tube, set the back end of it where you left your first mark, and mark again leaving 1/8″ or 3mm of padding.

measuring the second pen blank



After you’ve marked both of your little hash marks, you’ll want to use a straightedge to mark a full line across the blank to use as a guide when cutting. I use a speed square.

IMG_3069

using a straightedge to make your guide line

IMG_3071



Scroll to the top of this page and click “Step 2” to read about cutting your pen blanks.

Step 2: Cutting Your Pen Blanks

Now that you have your blanks measured, it’s time to head over to the saw and cut them. I’m going to warn you ahead of time, when I prepared this tutorial I had recently purchased this bandsaw off of Craigslist and hadn’t taken the time to tune it yet or change the 1/4″ blade to something a bit thicker. As a result, I’m going to give you a really good example of how a bandsaw cuts when it’s in dire need of a tune-up. If your bandsaw cuts like mine does in these pictures, it needs a little… attention.



I’ve also cut blanks by hand using a hacksaw or using a vise/reciprocating saw and a vise/circular saw back in the days when I didn’t have the $100-$200 to buy a tabletop bandsaw. They all work, just make sure you’re giving yourself the aforementioned 1/8″ or more padding to make up for how crooked those cuts are going to be. Out of all the tools I’ve used, a bandsaw has proven to be the best by far.   With all of that in mind, head over to your saw and make your cuts. It’s pretty simple – just follow the lines and keep the cut as straight as possible.

cutting pen blanks using a bandsaw

My cut started off just fine, but about halfway through the cut my non-tuned bandsaw decided that it had other plans and I had to compensate to stay as on-track as possible. This is where that 1/8″ slack I gave myself earlier comes in handy.

how a non-tuned bandsaw cuts



Preparing Your Pen Blank for a “Grain Match”

This next step is something you can do before you cut the blanks, or after depending on your preference. Without fail, one of the most impressive things to people when I give my pens as a gift or sell them is the “grain match”. In case you don’t know exactly what a grain match is, it’s where the original wood grain lines back up after you’ve turned and assembled the pen. Even after all of these years, it’s a pretty cool thing to see when you’re done.



A grain match takes more effort in some pens than others, but in a slim pen it’s pretty simple. The first step of this process is to mark a couple of small, diagonal hash marks with a pencil across both of the blanks.

how to make the wood grain line up on your wooden pens

the first step to making the grain match on wooden pens

I’ll use these little hash marks throughout this pen turning tutorial to determine which side I drill into, which side I insert the brass tubes into, and ultimately which ends of each blank I assemble the pen kit components into.



Note: A grain match takes a little extra time and attention but is not at all necessary. It’s pretty cool and impresses people by showing that you pay attention to fine details. The only consequence of removing these steps is that the grain won’t match up. Not really a big deal in the grand scheme of things, so if you lose track of the grain match along the way don’t kick yourself too much. Just keep on going and try again next time. You’ll still have a gorgeous pen if you follow the other steps in this tutorial.



Scroll to the top of this page and click “Step 3” to read about drilling your pen blanks.

Step 3: Drilling Your Pen Blanks

As I mentioned at the beginning of this post, I drill my blanks on my mini-lathe before turning them using a dedicated pen blank drilling chuck screwed onto my headstock spindle and a drill chuck in my tailstock. This is what that looks like:

using a dedicated pen blank drilling chuck

using a drill chuck on your mini-lathe

Again, you can use a drill press instead of this solution, just make sure you have a pen blank drilling vise to help you get the straightest, most centered holes possible.



Setting Up the Dedicated Pen Blank Drilling Chuck

After I’ve set my lathe up for drilling, I grab my blanks and put the side I’ve marked for grain match in first, toward the headstock. If you’re drilling with a drill press, this side should be on the bottom, against the table as you drill.

drilling pen blanks on a mini-lathe



After inserting the blank, I tighten the dedicated pen blank drilling chuck with the included keys.

tightening a dedicated pen blank drilling chuck



Setting Up the Drill Chuck

Now that my pen blank is securely fastened in the chuck, I setup my drill chuck which I inserted into my tailstock earlier with a 7mm bit.

insterting a 7mm drill bit into the mini-lathe drill chuck

tightening the drill chuck



Time to Drill!

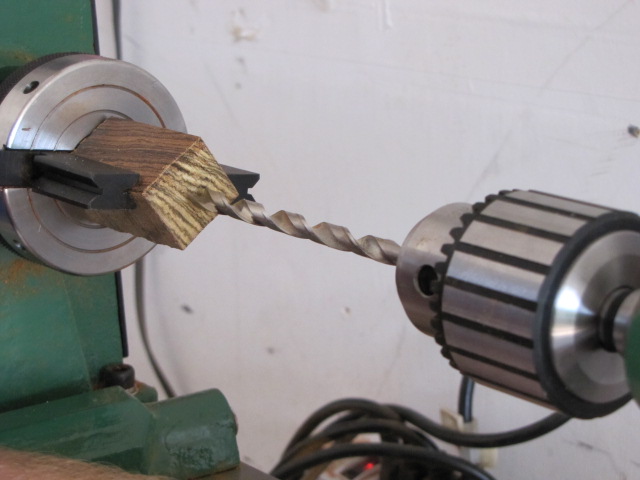

Pull the tailstock up to the pen blank, lock it into place, turn on the lathe, and slowly turn the tailstock handwheel to press the drill bit through the pen blank as far as the tailstock will extend. Make sure you back the bit out regularly to clear the shavings, otherwise it can become too tightly packed and blow out the bottom of the blank.



If the tailstock becomes fully extended before you’re all of the way through the blank, turn your mini-lathe off, fully retract the tailstock by turning the tailstock handwheel in the opposite direction as far as it will go, unlock the tailstock, pull it forward inserting the drill bit back into the pen blank as far as it will go, then turn the mini-lathe back on and finish drilling the hole.

pull your tailstock up to the pen blank

Pull your tailstock up to the pen blank

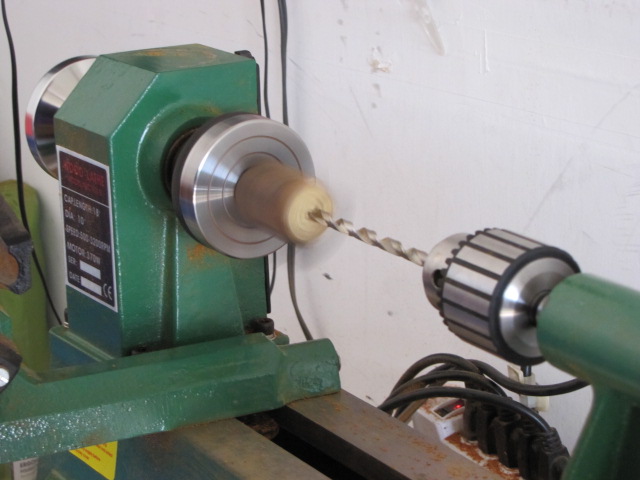

turn the lathe on and start drilling the hole

Turn the lathe on and start drilling the hole

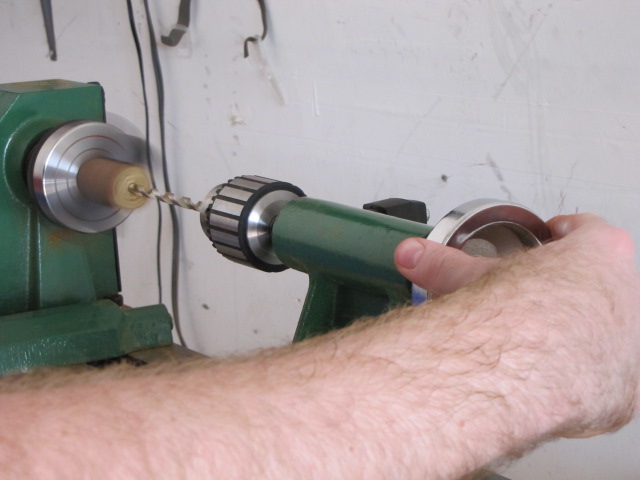

continue turning the handwheel until the tailstock is fully extended

Continue turning the handwheel until the tailstock is fully extended



finish drilling the hole in the pen blank

If your tailstock becomes fully extended, retract the tailstock as far as it will draw back using the tailstock handwheel, unlock it, pull it forward into the drilled pen blank as far as it will go, turn the lathe back on, and finish drilling the hole



Celebrate your perfectly centered, perfectly drilled pen blank

Celebrate your perfectly centered, perfectly drilled pen blank





Repeat all of the steps above for your other pen blank, and then you’ll have two blanks ready to receive their brass tubes, which will act as the foundation of your pen.

IMG_3111

IMG_3113

IMG_3115

IMG_3117

two perfectly drilled wood pen blanks, ready to receive brass tubes



Scroll to the top of this page and click “Step 4” to read about gluing the tubes into your pen blanks.

Step 4: Gluing the Brass Tubes into Your Drilled Pen Blanks

Now that your pen blanks are measured, cut, and drilled it’s time to glue the brass tubes into the drilled blanks. These brass tubes will serve as the foundation of your pen and ultimately be what all of the components are assembled into, so it’s important that this is done properly.



A little “trick” that many new pen turners don’t know is to sand the brass tubes before gluing them into the blanks. This creates tiny, almost microscopic abrasions on the tube that the glue can seep into, allowing for a superior bond which will significantly decrease the amount of broken pens you break during the turning process and a few other pesky problems many pen turners encounter. The grit doesn’t matter too much, I usually use something around 100:

sanding brass tubes before gluing them into the pen blank



You should sand the brass tube until there are noticeable abrasions covering the entire tube. Here is a side-by-side of a tube I haven’t sanded vs. one that I have.

sanded brass tube vs. unsanded brass tube



Do the same thing to the second tube and then wipe both tubes with a paper towel. I don’t think this step is really necessary, but I want to make sure that I remove any spare sand from the sandpaper so the bond is sure to be as strong as possible.

sanded brass tubes

clean brass tubes before applying glue



Gluing the Prepped Brass Tubes into Your Pen Blanks

Now that the brass tubes are ready, we can go ahead and glue them into the blanks. One quick note if you’re keeping up with the grain match – make sure that you insert the brass tube into the end we put a couple of hash marks on, like so:

insert the brass tube into the grain match side of the pen blank



Okay, let’s glue! Flexible CA glue is preferred by most pen turners I’ve spoken with because it has a little “give” which can be helpful to prevent shattering your blanks when they’re on the lathe. Apply the CA glue all around the tube liberally. If you are worried about getting CA finish on your fingers during this process, they make pen tube insertion tools that you can buy but personally I prefer the control of holding it with my fingers. Besides, I’ve gotten used to living with CA finish on my fingers after years of pen turning.

applying CA glue to brass tubing



After you’ve applied your CA glue liberally, insert the tube while twirling it and sliding it in and out of the blank. Inappropriate jokes aside, the idea is to evenly coat the inside of the pen blank to get the best bond possible. This is about what the process looks like (it’s hard to show twirling/sliding in and out in pictures, but I think you get the idea):

gluing the brass tubes into the blank

inserting the brass tube into the pen blank



By the way, you’ll want something you don’t care about getting glue on underneath your pen blank as all of this is happening. There’s likely going to be some excess glue dripping off of your blank. All of the above happens very quickly, along with the following step.



After you’ve twirled and pushed the tube almost completely into the blank, turn the blank vertically and press the tube into the pen blank using a surface that you’re okay ruining. Then drag the blank to remove most of the excess glue. I usually use a piece of scrap cardboard.

pressing the glued brass tube into the pen blank

drag the pen blank to remove most of the excess glue

IMG_3136



This will cure on it’s own within a couple of hours if left alone, but if you want to make sure your blanks don’t get stuck to the surface you set them on (or to each other), apply a spritz of accelerator to the glue-covered end.

applying accelerator to your pen blank

IMG_3142



Repeat all of the steps above for the second blank and leave them to cure for the next couple of hours. Even if you’ve applied accelerator to the ends, the CA glue inside is still curing so give it some time. If you’re not patient enough to wait 2-3 hours for the glue to cure completely, you can probably get away with waiting 15-30 minutes. I used to do it all of the time when I was a kid, but I prefer to exercise a little more patience when pen turning these days.



Scroll to the top of this page and click “Step 5” to read about sanding and milling your pen blanks.

Step 5: Sanding & Milling the Pen Blanks for Perfectly Flush Edges

Now it’s time to remove all excess material on the ends of the pen blanks before we move onto turning. This is done using a belt sander and a pen mill. It is extremely important that you follow the instructions in this step very closely. Otherwise you could end up with a cracked pen, or a pen with gaps between the pen kit components and your finished blanks.



When we cut our blanks, we left around 1/8″ of material just in case anything went wrong, and now it’s time to take that off. This is where a respirator really comes in handy. Otherwise you’ll probably be blowing sawdust into a tissue and trying to cough it out for a few days.

pen blanks before excess is removed with my belt sander



Sanding Excess Material Off Using a Belt Sander

There are really only three things to pay attention to when working your pen blanks on a belt sander: Keep even pressure on the blank as you sand, keep it moving constantly, and leave just a tiny bit of material (in other words don’t take it all of the way down to the brass).

sanding your pen blanks

pen blanks after the belt sander

See how I’ve left just a tiny bit of material on the end of the blanks? Now it’s time to move onto the pen mill, and then we can finally start turning.



Using a Pen Mill to Finish Preparing the Blanks for the Lathe

The pen mill is a simple tool, but it’ll save you so much pain and heartache that it’s probably worth 2-3 times what tool suppliers charge for it. The pen mill accomplishes two very important things:

  1. Ensures your pen blanks are 100% level and flush when pressed up against your pen kit accessories
  2. Removes all excess glue inside the tube, preventing it from expanding and cracking during assembly

a picture of a 3/4" pen mill

Trust me when I say that there aren’t many things more disappointing than spending hours making a perfect, beautiful pen, beginning to assemble it, then hearing a tiny *crack* due to excess glue left inside the tube or pressing the accessory all of the way up to the completed blank only to see that there are seemingly gigantic gaps staring back at you in an otherwise perfect pen. And that is why I believe the pen mill is one of the most important tools in a pen makers shop.



I usually set mine in my drill which is pretty self explanatory, but I’ve taken a picture just in case.

inserting the pen mill into a drill



Insert the pen mill into pen blank and turn it until you’re down to the brass tube. Try to take off as little brass as possible, but make sure you don’t leave any excess material.

using a pen mill to finish preparing the pen blanks

what your milled pen blank should look like



Make sure you mill both ends of both blanks until you have at least CLOSE to a perfect circle while making sure to take off as little brass as possible. That circle signifies that you’re going to have perfectly flush edges when it’s time for assembly, so it’s extremely important that you take your time during this step.



It’s FINALLY Time to Move Onto Turning

Now that you have two perfectly sanded and milled blanks, it’s time for the fun part: Turning.

measured, cut, glued, sanded, and milled pen blanks ready to turn



Continue this tutorial: Turning Your Prepared Pen Blanks >>>
